This unit apply to -25 ℃ ~ -35 ℃ room temperature and -30 ℃ ~ -45 ℃ evaporating temperature .

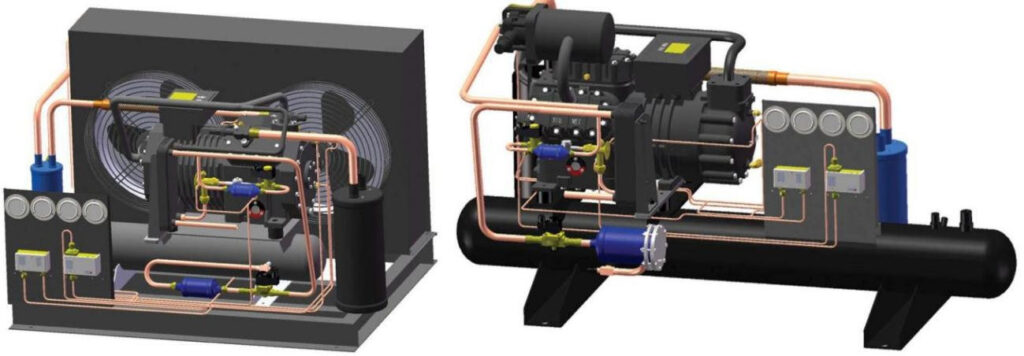

SLF-8~30HP Air-cooled Condensing Unit Technology Parameter
Model
SLF-8.2
SLF-15.2
SLF-20.2
SLF-30.2
Final temp.(℃)
-25 ～ -35
Evaporating temp.(℃)
-30 ～ -45
Refrigerating capacity
(kW/10³kCal/h)
5.6/4.8
10.2/8.6
13.7/11.8
19.2/16.5
Input power（kW）
5.4
10.0
12.9
17.9
COMPRESSOR
Model × Quantity
BSV4-800
BSV4-1500
BSW6-2000
BSW6-3000
Starting current LRA/pc
81
81 (PWS)
97 (PWS)
135 (PWS)
Max current MRA/pc
17
31
37
53
Evaporating temp.(℃)
Ambient temp.32℃, Condensing temp.50℃, R22 (kW)
-30
8.7
15.9
21.2
30.5
-35
7.1
13.0
17.2
24.5
-40
5.6
10.2
13.7
19.2
-45
4.2
7.7
10.6
14.5
Evaporating temp.(℃)
Ambient temp.27℃, Condensing temp.45℃, R22(kW)
-30
8.8
16.0
21.8
30.9
-35
7.2
13.1
17.7
25.0
-40
5.7
10.4
14.1
19.8
-45
4.4
8.0
11.0
15.2
CONDENSER
Heat exchange cap.（kW）
23
41
56
80
FNH/V-condensing area
FNH-70m²
FNH-110m²
FNH-170m²
FNV-220m²
Air flow（m3/h）
9000
13140
21640
30000
Fan blade dia.(mm)×quan.
450×2
500×2
600×2
700×2
Fan power（W）
360
900
1560
1500
Liquid receiver（L）
15
33
45
60
ELECTRIC
Main contact min. cap.
25A
40A
50A
32A×2
Thermorelay adjusted value（A）
17A
31A
37A
27A×2
Wire dia./groud dia.（mm2）
4/2.5
6/2.5
10/4
6×2/4
PIPE
Suction pipe（mm）
28
35
42
54
Liquid pipe（mm）
16
19
19
22
| Model | SLF-8.2 | SLF-15.2 | SLF-20.2 | SLF-30.2 | |
|---|---|---|---|---|---|
| Final temp.(℃) | -25 ～ -35 | ||||
| Evaporating temp.(℃) | -30 ～ -45 | ||||
| Refrigerating capacity (kW/10³kCal/h) |
5.6/4.8 | 10.2/8.6 | 13.7/11.8 | 19.2/16.5 | |
| Input power（kW） | 5.4 | 10.0 | 12.9 | 17.9 | |
| COMPRESSOR | Model × Quantity | BSV4-800 | BSV4-1500 | BSW6-2000 | BSW6-3000 |
| Starting current LRA/pc | 81 | 81 (PWS) | 97 (PWS) | 135 (PWS) | |
| Max current MRA/pc | 17 | 31 | 37 | 53 | |
| Evaporating temp.(℃) | Ambient temp.32℃, Condensing temp.50℃, R22 (kW) | ||||
| -30 | 8.7 | 15.9 | 21.2 | 30.5 | |
| -35 | 7.1 | 13.0 | 17.2 | 24.5 | |
| -40 | 5.6 | 10.2 | 13.7 | 19.2 | |
| -45 | 4.2 | 7.7 | 10.6 | 14.5 | |
| Evaporating temp.(℃) | Ambient temp.27℃, Condensing temp.45℃, R22(kW) | ||||
| -30 | 8.8 | 16.0 | 21.8 | 30.9 | |
| -35 | 7.2 | 13.1 | 17.7 | 25.0 | |
| -40 | 5.7 | 10.4 | 14.1 | 19.8 | |
| -45 | 4.4 | 8.0 | 11.0 | 15.2 | |
| CONDENSER | Heat exchange cap.（kW） | 23 | 41 | 56 | 80 |
| FNH/V-condensing area | FNH-70m² | FNH-110m² | FNH-170m² | FNV-220m² | |
| Air flow（m3/h） | 9000 | 13140 | 21640 | 30000 | |
| Fan blade dia.(mm)×quan. | 450×2 | 500×2 | 600×2 | 700×2 | |
| Fan power（W） | 360 | 900 | 1560 | 1500 | |
| Liquid receiver（L） | 15 | 33 | 45 | 60 | |
| ELECTRIC | Main contact min. cap. | 25A | 40A | 50A | 32A×2 |
| Thermorelay adjusted value（A） | 17A | 31A | 37A | 27A×2 | |
| Wire dia./groud dia.（mm2） | 4/2.5 | 6/2.5 | 10/4 | 6×2/4 | |
| PIPE | Suction pipe（mm） | 28 | 35 | 42 | 54 |
| Liquid pipe（mm） | 16 | 19 | 19 | 22 | |
