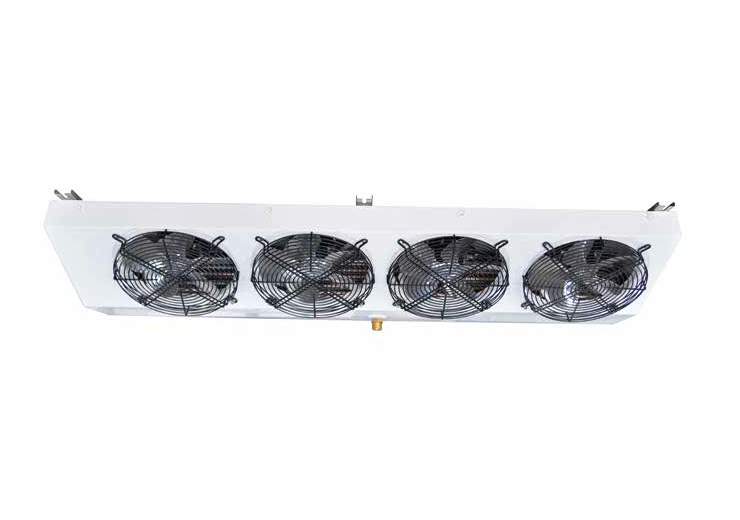

EEJ and EEJ Plus series
Advantages
- Advantages of copper Hispanic evaporators with internal grooves
- High performance fan
- Efficient heat exchanger
- Low noise
- Easy to install and maintain
- Low power consumption
- EEJ Series: Fin spacing is 3.2 and 6.4 mm.
- EEJ Plus series: Fin spacing is 4.5/9mm.
General characteristics
Our efficient flapping wing packaging is made of aluminium fins with special profiles and copper tubes with high-quality 9.52mm inner grooves. The heat exchanger is supplied clean inside the pipeline and tested at a pressure of 30 bar.
Shell
From aluminiium coated in white to electrostatic powder, it has high corrosion resistance and impact resistance. It does not produce toxic waste.
Fan
All fans are equipped with high safety standard motors and are adapted to the casing through an anti vibration system.
Defrosting system
Equipped with Zoppas stainless steel heater.
Electrical installation and parts
Grounding connection, installed in the junction box, with access holes for installing sealing systems. All materials have been carefully selected to ensure their long-term reliability

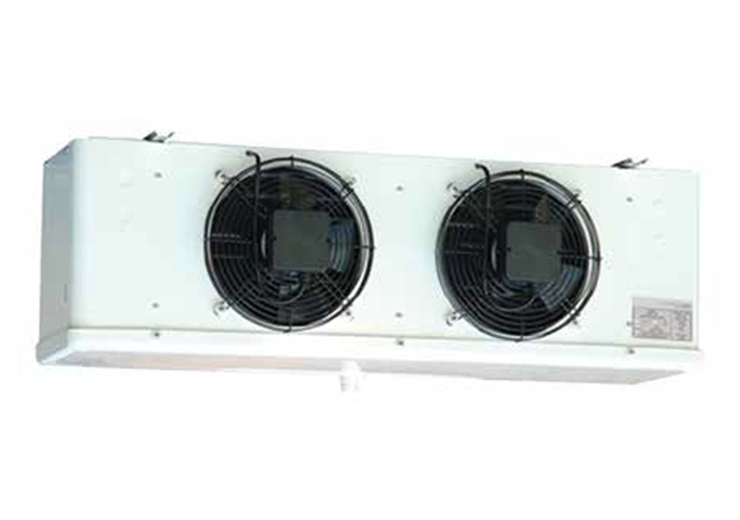

EEA Series Cubics
Advantages
- High performance fan
- Efficient heat exchanger
- Low noise
- Easy to install and maintain
- Low power consumption
- Best cost-effectiveness
- Fin spacing of 4,6 and 9 millimeters
- Our parallel pipeline configuration allows us to reach lower temperatures in a shorter period of time, with less icing and higher relative humidity
- EasyCold –25 ºC 6 mm
- Others –25 ºC 9 mm
- Hot air thawing version available upon request
General characteristics
Our efficient fin packaging is made of special profiles of aluminium fins and high-quality 12mm copper tubes. The heat exchanger is supplied clean inside the pipeline and tested at a pressure of 30 bar.
Shell
From aluminium coated in white to electrostatic powder, it has high corrosion resistance and impact resistance. It does not produce toxic waste.
Fan
All motors adopt high safety standards for external rotor axial motors and are suitable for enclosures with anti vibration systems
Defrosting system
Provided by a stainless steel resistor, the sheath is located in an aluminium tube on the tapping packaging and drainage tray. It helps to extract and replace resistance in the very small space between the evaporator and the chamber wall.
Electrical installation and parts
Grounding connection, installed in the junction box, with access holes for installing sealing systems. All materials have been carefully selected to ensure their long-term reliability

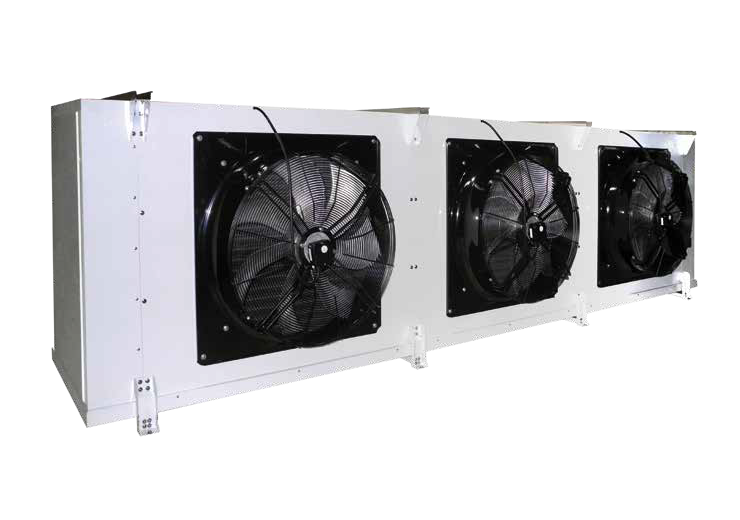

Cubic Industrial EEB Series
Advantages
- High performance ecologist
- Efficient heat exchanger
- Low noise
- Convenience of installation and maintenance
- Low power consumption
- SFin spacing of 4,5,7 and 10 mm
- Hot air thawing version available upon request
General characteristics
Our efficient fin packaging is made of special profiles of aluminium fins and high-quality 15mm copper tubes. The heat exchanger is supplied clean inside the pipeline and tested at a pressure of 30 bar.
Shell
From aluminium coated in white to electrostatic powder, it has high corrosion resistance and impact resistance. It does not produce toxic waste.
Fan
The fans used at 500mm, 550mm, 630mm, and 800mm (depending on the model) are equipped with an external rotor three-phase motor, and the IP-54 operates at the corresponding temperature of -40 º C/+40 º C. All evaporators are equipped with a series connection electrical box.
Defrosting system
Provided by a stainless steel resistor, which is housed in an aluminium tube and is located on the tapped packaging and drainage plate. They are connected in series and are optional in the 4mm series. Their terminals are vulcanized on the tubes to avoid moisture issues, and they are strategically located in the evaporator to achieve uniform defrosting

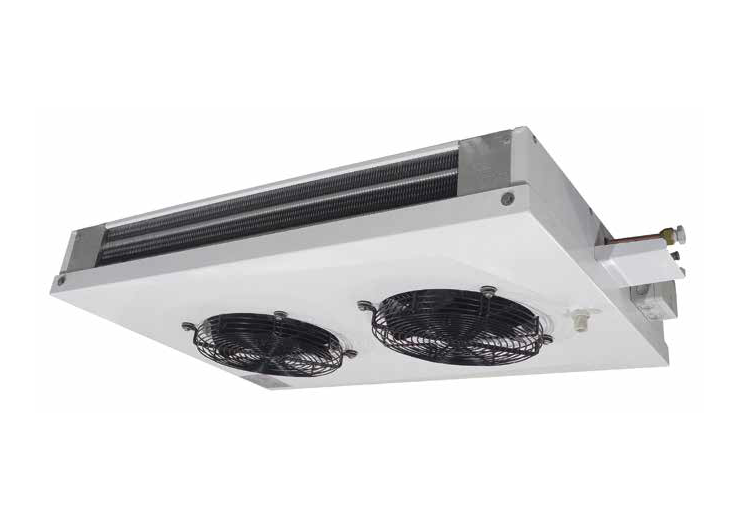

EED series Low, medium and high
Advantages
- Inner groove copper tube
- High performance fan
- Efficient heat exchanger
- Low noise
- Easy to install and maintain
- Low power consumption
- Fin spacing of 4,4.5, 6, 7, and 10mm
General characteristics
Our efficient flapping wing packaging is made of special profiles of aluminium fins and copper tubes, with 9.52 and 15mm inner grooves in the middle profile and 15mm inner grooves in the high profile. The heat exchanger is supplied clean inside the pipeline and tested at a pressure of 30 bar.
Shell
From aluminium coated in white to electrostatic powder, it has high corrosion resistance and impact resistance. It does not produce toxic waste. Galvanized steel starting from 630mm.
Fan
All motors adopt high safety standards for external rotor axial motors and are suitable for enclosures with antivibration systems.
Defrosting system
Provided by a stainless steel resistor, the sheath is located in an aluminium tube on the tapping packaging and drainage tray.
Electrical installation and parts
Grounding connection, installed in the junction box, with access holes for installing sealing systems.

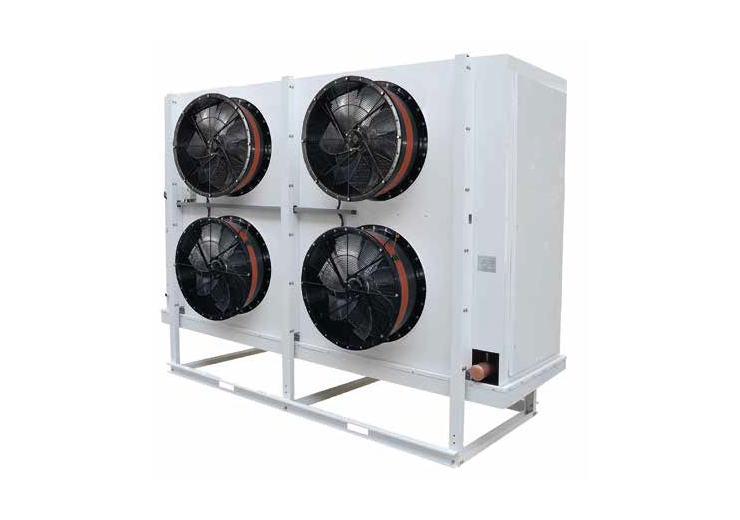

EEF Series Frozen tunne
Advantages
- Fan with suction or discharge direction
- Efficient heat exchanger
- Low noise
- Easy to install and maintain
- Low power consumption
- Fin spacing 7 and 10 mm
General characteristics
Our efficient fin packaging is made of special profiles of aluminium fins and high-quality 15mm copper tubes. The heat exchanger is supplied clean inside the pipeline and tested at a pressure of 30 bar
Shell
From aluminium coated in white to electrostatic powder, it has high corrosion resistance and impact resistance. It does not produce toxic waste.
Fan
The 630 and 800mm fans are equipped with an external rotor three-phase motor with IP-54 protection and operate between -40 º C/+40 º C. All evaporators are equipped with standard electrical junction boxes.
Defrosting system
Provided by a stainless steel resistor, the sheath is located in an aluminium tube on the tapping packaging and drainage tray. They are built-in to the series and optional in the 10mm series. Their terminals are vulcanized on the tubes to avoid problems more moisture, and they are strategically placed in the evaporator to achieve uniform defrosting.
