Description

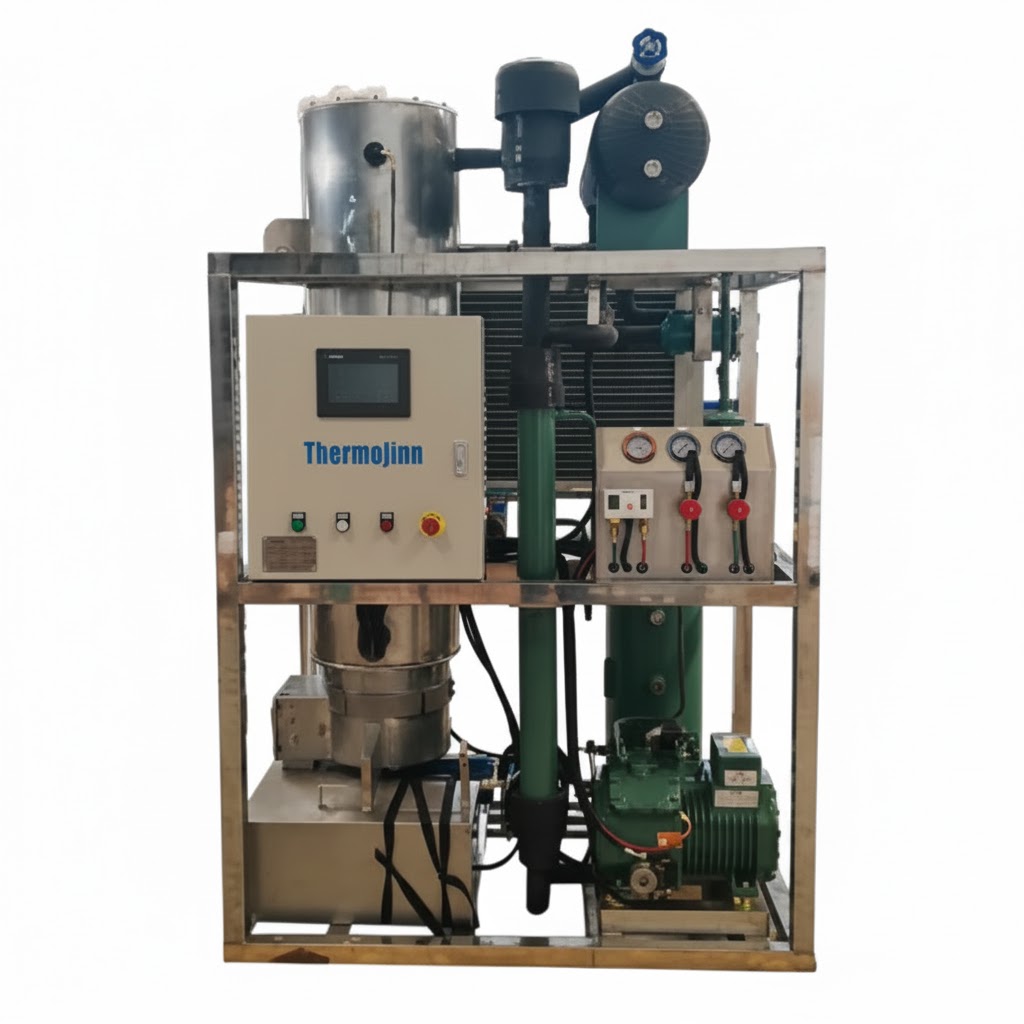

Thermojinn Tube Ice machine, which can make high quality Tube Ice for you. Tube ice is a kind of regular hollow cylindrical transparent Ice, compared with other kinds of Ice, tube Ice has the highest density which is pure, has good air permeability and long storage life. Mainly used for human daily life, such as drinks freezing, wines mixing, food preservation, cold compress, and also used for food &aquatic products processing, poultry slaughtering, meat processing and other industries.
Product Features
- Production capacity: 1ton per day.
- Thermojinn tube ice is hollow tube shaped, shiny and transparent, and environmentally friendly.
- Multiple tube ice sizes available, Φ22mm, Φ29mm, Φ35mm etc.
- Modular design, simple on-site maintenance, suitable for container transportation.
- Thermojinn pursues the manufacture of high-quality and high sanitary tube ice machines. The mechanical parts in contact with water are made of SUS304 stainless steel, and the tube ice produced is clean and sanitary, and can be directly eaten.
- Fully automatic control, saving labour cost
Tube Ice Machine Application
- Edible Ice
- Aquatic food Cooling
- Chemicals dyes
- Seafood Quick frozen
- concreate cooling system
Tube Ice Machine Parameter
| Model | Capacity (t/24hr) | Refrigeration capacity (kw) | Install Power (kw) | Power consumption (kw) | Dimension (mm) | Operating weight (kg) |
| TJT-10A | 1 | 6 | 6 | 4.5 | 1320X850X1800 | 650 |
| TJT-20A | 2 | 12 | 12 | 8 | 1600X1450X2250 | 750 |
| TJT-30A | 3 | 18 | 15 | 9.2 | 2250X1600X2250 | 950 |
| TJT-50A | 5 | 30 | 20 | 14.5 | 3000X1600X2450 | 1650 |
| TJT-100A | 10 | 60 | 40 | 32 | 2110X1345X3155 | 3500 |
| TJT-150W | 15 | 90 | 65 | 50 | 2700X2000X2250 | Unit:1450 |
| 1500X1200X4365 | Evaporator:2150 | |||||
| Φ2000×2410 | Cooling tower:650 | |||||
| TJT-200W | 20 | 120 | 80 | 65 | 2800X2200X2970 | Unit:2350 |
| 1500X1200X4657 | Evaporator:2450 | |||||
| Φ2175×2565 | Cooling tower:1120 | |||||
| TJT-250W | 25 | 150 | 100 | 75 | 3000X2200X2500 | Unit:2690 |
| 2000X1800X5575 | Evaporator:2750 | |||||
| Φ2175×2565 | Cooling tower:1120 | |||||
| TJT-300W | 30 | 180 | 125 | 95 | 3000X2200X2500 | Unit:2720 |
| 2000X1800X6075 | Evaporator:2968 | |||||
| Φ2650×2645 | Cooling tower:1300 | |||||
| TJT-400W | 40 | 240 | 167 | 117 | 3085X2200X2545 | Unit:5000 |
| 2175X2100X6575 | Evaporator:5500 | |||||
| Φ2650×2645 | Cooling tower:1300 |
- W- Water cooled condenser with cooling tower. A-Air cooled condenser. Have Evaporative condenser for optional.
- Refrigerant: R22/R404A/R507A. Power: 380V/3P/50HZ.
- Condition: Ambient temperature:35℃. Wet-B: 25℃. Water inlet temperature: 20℃
15T-40T Tube ice machine is Split installation.
Product Details
Tube Ice making Evaporator
Direct evaporation of refrigerant, flooded ice making evaporator, high ice making efficiency. Stainless steel high efficiency tube. External insulation construction of evaporator, anti-corrosion, heat preservation and energy conservation. Stainless steel ice cutting transmission mechanism makes the length of pipe ice uniform and the cut smooth and beautiful.

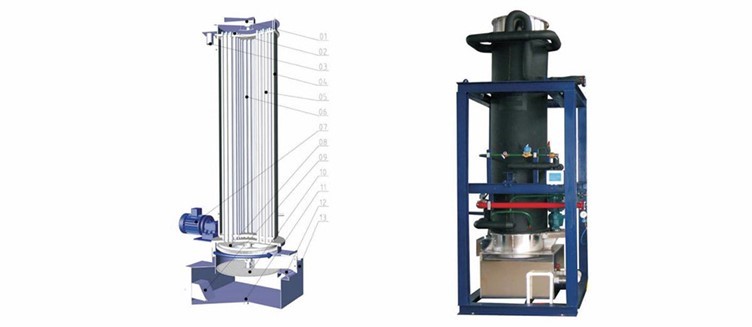

- Upper water tank
- Water distributor
- Water inlet of upper water tank
- Shell
- Inside of heat exchanger
- Heat exchanger
- Reducer
- Ice cutter
- Water outlet of lower water tank
- Ice water sepration pam
- Ice outlet
- Ice Outlet
- Lower water tank
Compressor unit module:

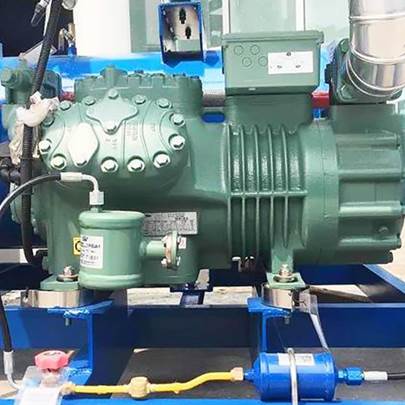

- Compressor – Bitzer/Hanbell/Frascold/XM and etc.
- Vessels – Liquid receiver, oil separator (when needed), suction accumulator;
- Piping – Suction and discharge line with Cooper or Seamless steel pipe;
- Valves – Danfoss/ AMG valves, word famous brand.
- Control Panel – ThermoJinn, PLC &HMI fully automatic control.
We can provide a complete scheme of tubular ice factory according to customer needs, including water filter, water tank, tube ice machine, freezer, ice packaging machine, cold storage and ice
