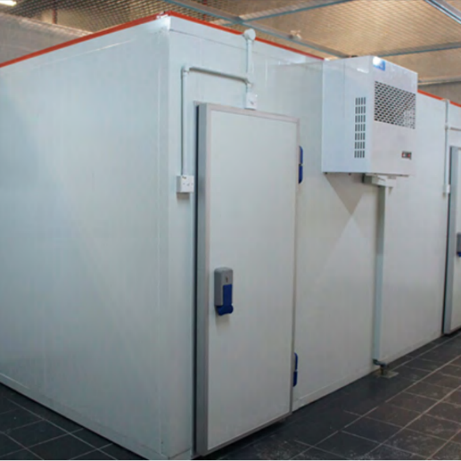

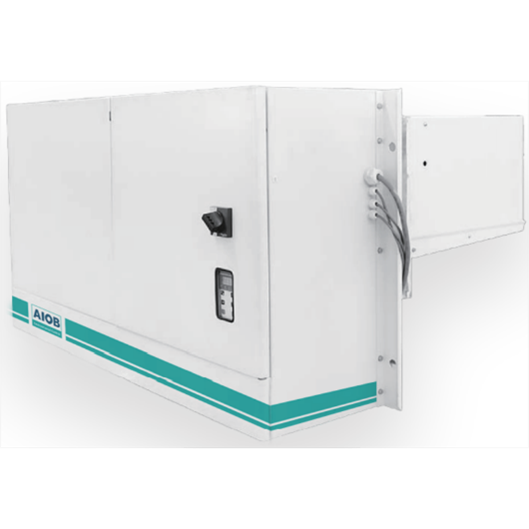

A01T series cold storage Monoblock is applicable to a variety of applications. When the standard unit is installed against the wall, it can be applied separately or stacked, with a wide range of applications. The outdoor and indoor shell of the monoblock are made of steel plates which have been treated with epoxy powder coating. The refrigerant has been filled in the equipment and can be used after being powered on.
Product Details
Through Wall Monoblock Features
- Easy and quick installation
- Low installation and operation costs
- High quality, high reliability
- The world's top industrial design, exquisite and beautiful
Best Application range
- Medium/low temp (10~-25℃）
- Storage Volume (27~309m³）
- Through Wall type installation
Standard Configuration
- Refrigerant charged
- High quality scroll compressor
- Capillary throttling system
- Automatic Pressure safety protection
- Automatic defrosting system control by temperature or pressure
- Condensing pressure control system
- Cable for power and in 5 m
- Fully integrated multi-function electronic temperature control system
- Remote electronic control panel
Power supply
- 380V/3N~/50HZ
- 440-460V/3N~/60HZ
Condensation type
- Centrifugal fan, Reliable operation, large air volume
Automatic control
- Electronic control panel is easy to use and operate. The interface is suitable for different system requirements, and is suitable for small and medium-sized cold storage.
MEDIUM TEMPERATURE ARGUMENTS - A01T
| Model | TMA035C2 | TMA045C2 | TMA055C2 | TMA065C2 |
| Compressor (HP) | 3.5HP | 4.5HP | 5.5HP | 6.5HP |
| Power supply | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380v/3p/50hz |
| Condenser Air flow rate (m3/h) | 3600m3/h | 5400m3/h | 5400m3/h | 7200m3/h |
| Evaporator air flow rate (m3/h) | 6000m3/h | 9000m3/h | 9000m3/h | 11181m3/h |
| Installation power (kw) | 3.5kw | 4.8kw | 5.4kw | 6.9kw |
LOW TEMPERATURE ARGUMENTS - A01T
| Model | TLA065C2 | TLA085C2 | TLA105C2 | TLA135C2 |
| Compressor (HP) | 6.5HP | 8.5HP | 10.5HP | 13.5HP |
| Power supply | 380V/3P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz | 380v/3p/50hz |
| Condenser Air flow rate (m3/h) | 3600m3/h | 5400m3/h | 5400m3/h | 7200m3/h |
| Evaporator air flow rate (m3/h) | 6000m3/h | 9000m3/h | 9000m3/h | 11181m3/h |
| Installation power (kw) | 6.4kw | 7.6kw | 9.3kw | 12.1kw |

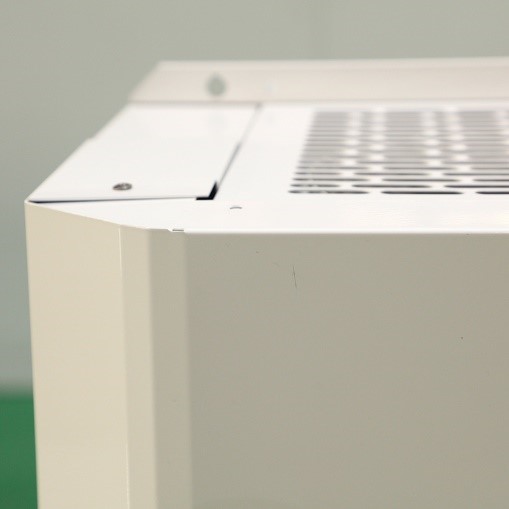

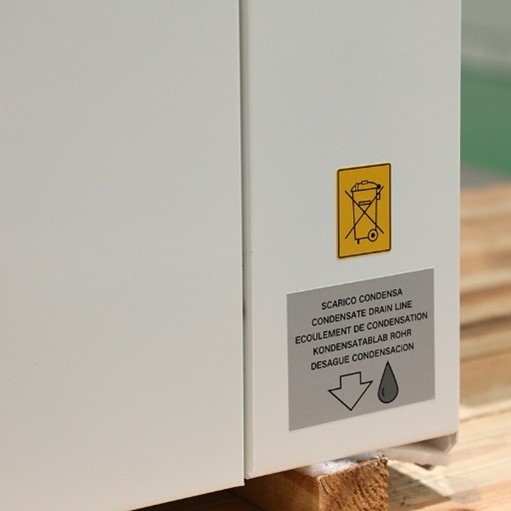

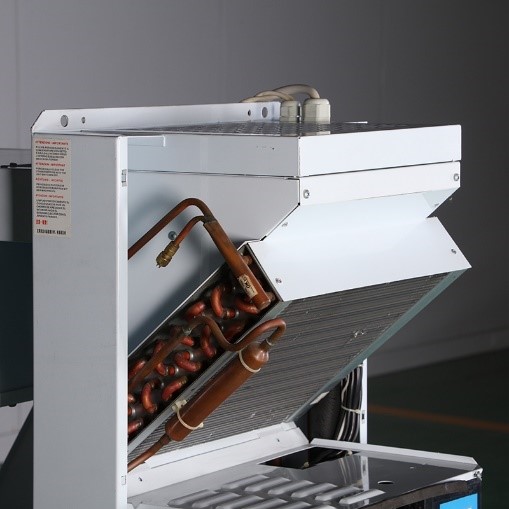

Product Gallery
