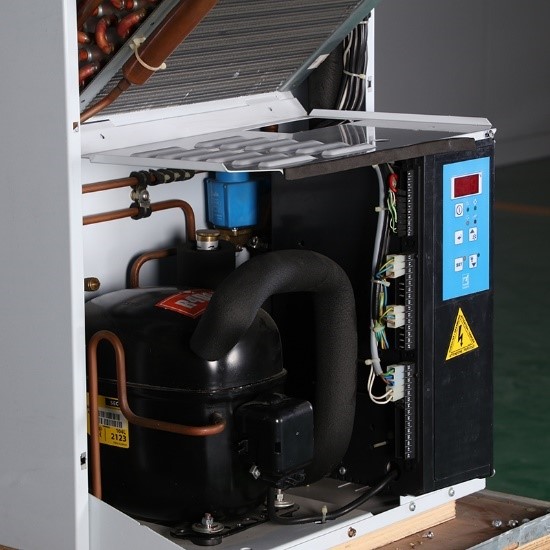

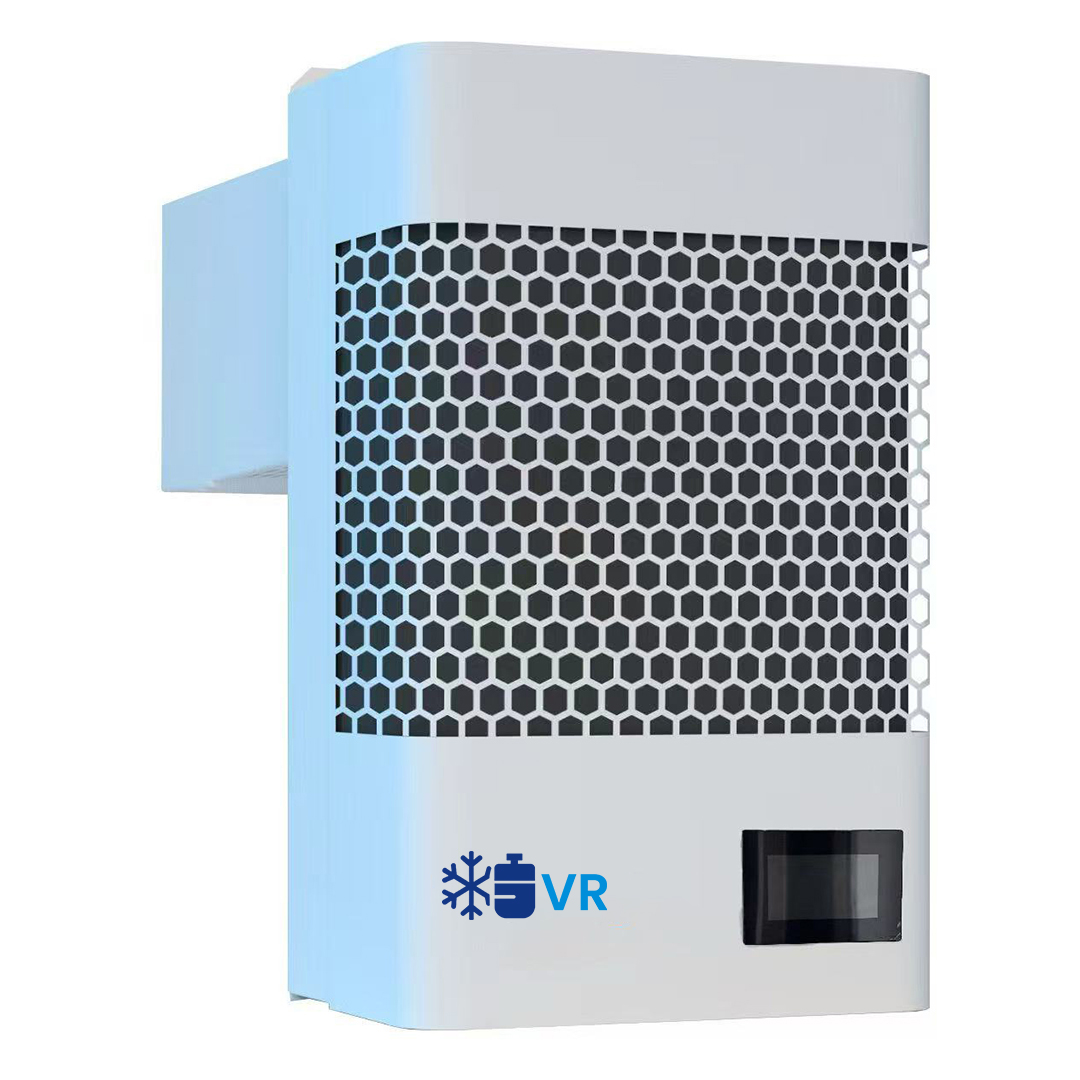

A01W series Monoblock applies to cold storage. The unit can be installed on the wall, can be assembled with multi units stacked together Cases of the Monoblock are with Epoxy sprayed steel plates. Hermetic piston compressors are applied, with R404A as the refrigerant.
Product Details
Monoblock Features
- Quick installation, time-saving and labour -saving
- Cold room space completely free with units on the wall
- The white color of the evaporator blends with the walls of the cold room
- Best surface-capacity ratio

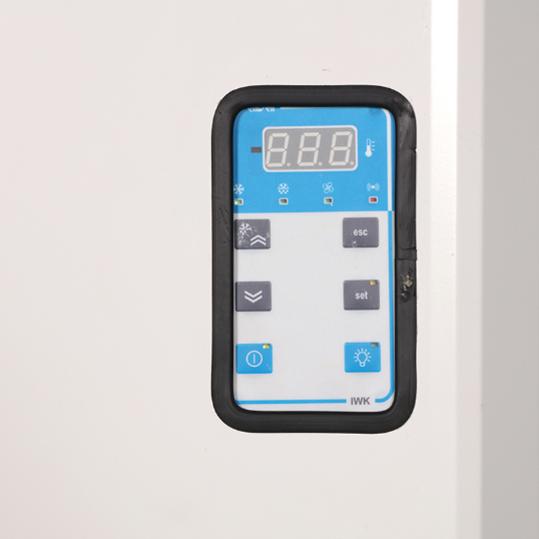

- Remote electronic control panel with user-friendly interface
Best Application range
- Medium/low temp (-25~10℃)
- Storage Volume (4~77m³)
- Wall straddling type installation
Standard Configuration
- Refrigerant charged
- High quality scroll compressor
- Capillary throttling system
- Automatic Pressure safety protection
- Automatic defrosting system control by temperature or pressure
- Condensing pressure control system
- Cable for power and in 5 m.
- Fully integrated multi-function electronic temperature control system
- Remote electronic control panel
Power supply
- 230V/1~/50(60hz)
- 380V/3N~/50HZ
- 440-460V/3N~/60HZ
Condensation type
- Air + Axial Fan
Operating environment requirements
- The outdoor part of the Monoblock shall be placed in a well-ventilated space
- The Monoblock should be installed away from heat sources
- Correctly install the position of the drain pipe so that the defrosting water can be discharged smoothly
- The joint of cold storage shall be fully sealed and waterproof.
- The ambient humidity should not exceed 90%
MEDIUM TEMPERATURE ARGUMENTS - A01W
| Model | WMA010C2 | WMA015C2 | WMA018C2 | WMA025C2 |
| Compressor (HP) | 1HP | 1.5HP | 1.8HP | 2.5HP |
| Power supply | 220V/1P/50Hz | 220V/1P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
| Condenser Air flow rate (m3/h) | 630m3/h | 1260m3/h | 2670m3/h | 2670m3/h |
| Evaporator air flow rate (m3/h | 745m3/h | 1490m3/h | 2670m3/h | 2670m3/h |
| Installation power (kw) | 0.995kw | 1.477kw | 1.662kw | 2.135kw |
LOW TEMPERATURE ARGUMENTS - A01W
| Model | WLA010C2 | WLA015C2 | WLA020C2 | WLA030C2 | WLA040C2 |
| Compressor (HP) | 1HP | 1.5HP | 2HP | 3HP | 4HP |
| Power supply | 20V/1P/50Hz | 220V/1P/50Hz | 380v/3P/50hz | 380v/3P/50hz | 380v/3P/50hz |
| Condenser Air flow rate (m3/h) | 630m3/h | 1260m3/h | 1260m3/h | 2670m3/h | 2670m3/h |
| Evaporator air flow rate (m3/h) | 745m3/h | 1490m3/h | 1490m3/h | 2670m3/h | 2670m3/h |
| Installation power (kw) | 0.86kw | 1.243kw | 1.538kw | 1.992kw | 2.539kw |
